The smarter, greener flooring system
The mighty dome
Ecodome has totally reimagined flooring systems for an eco-friendlier world.

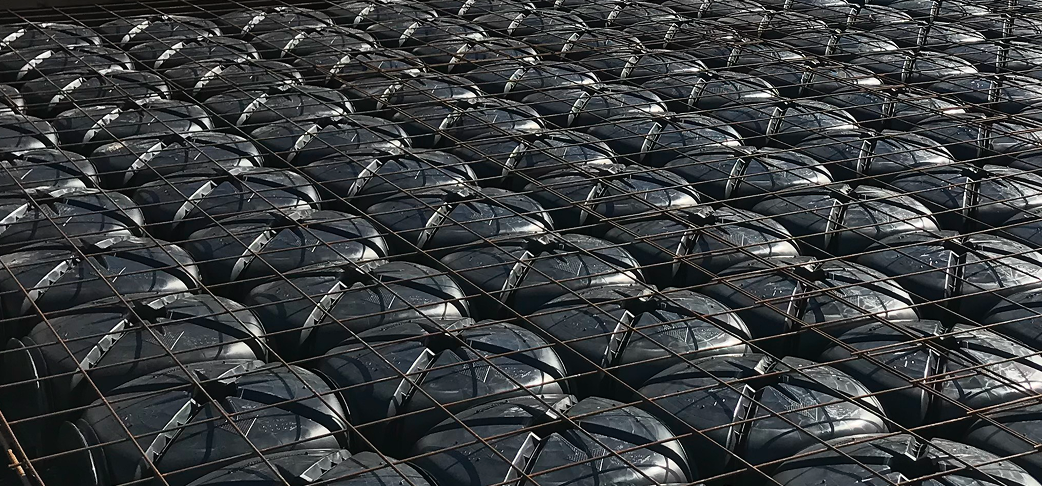

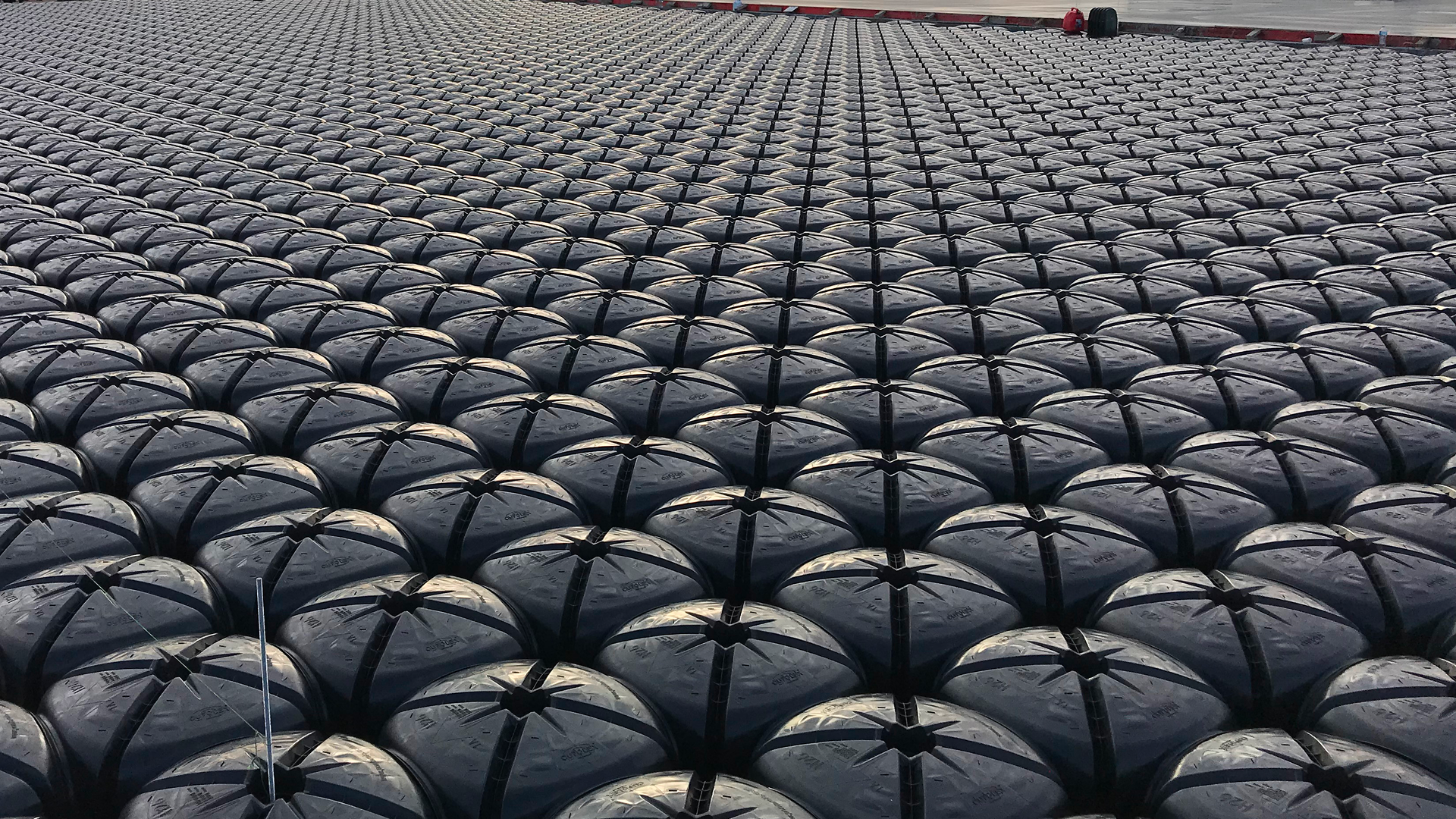

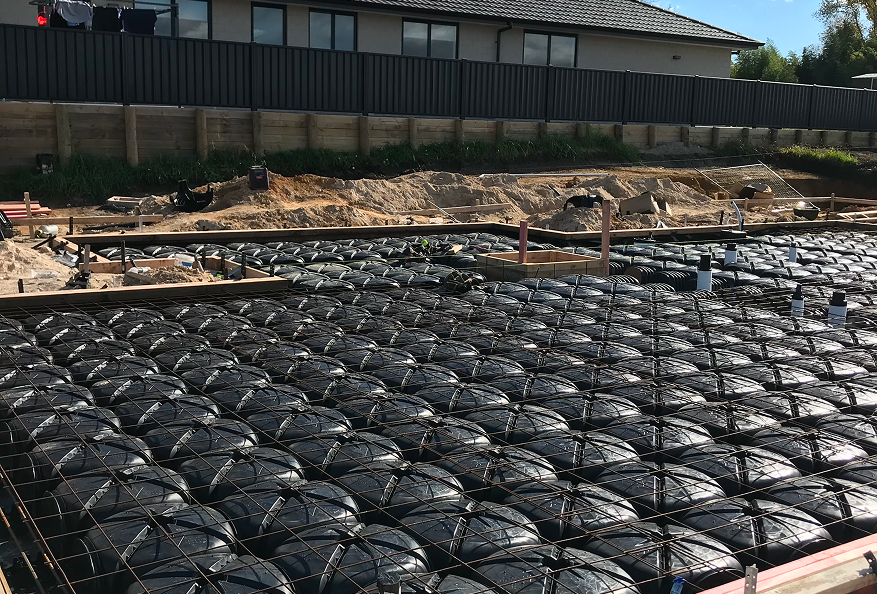

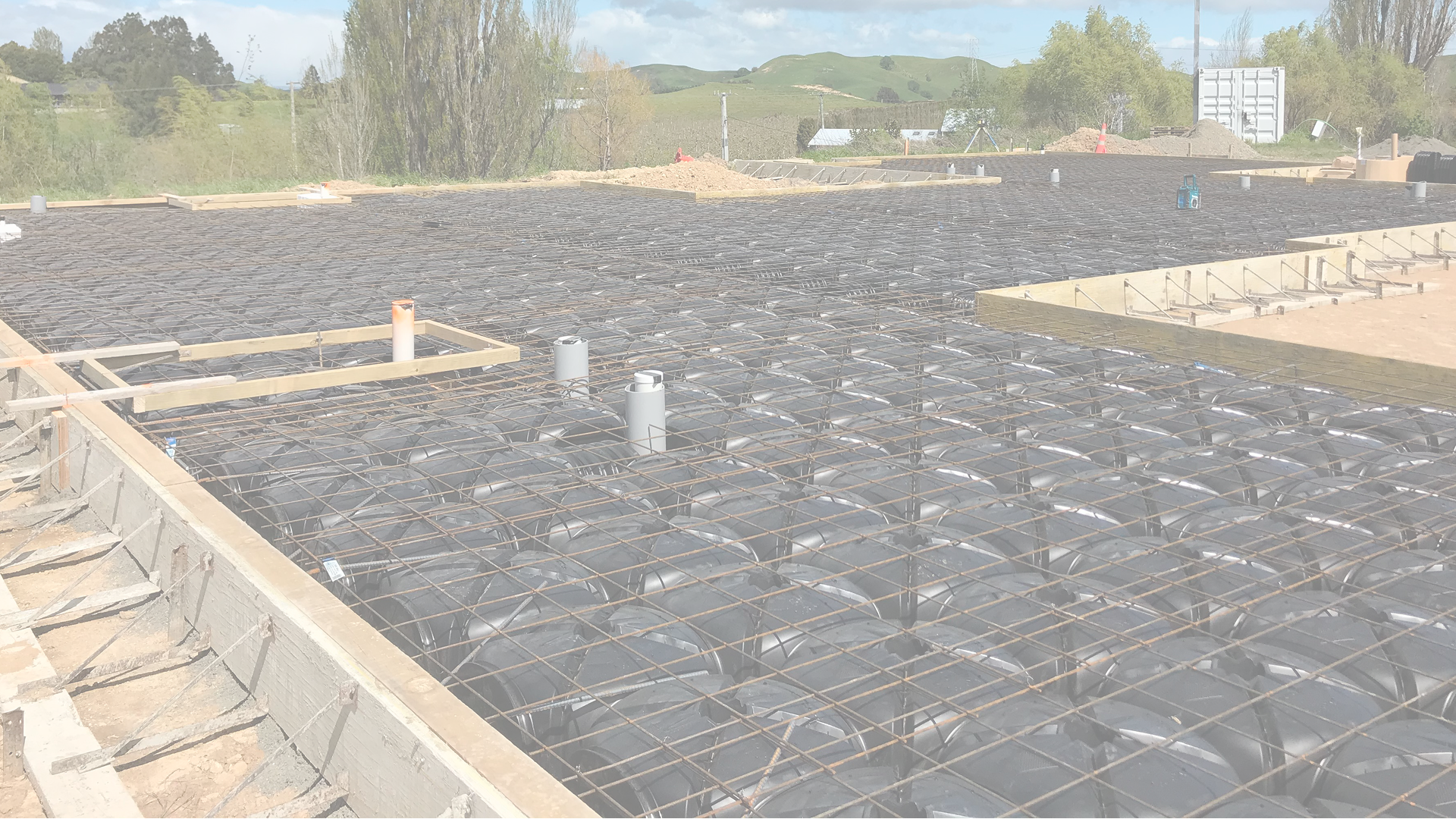

Concrete is poured over our interlocking dome system to create a floating or structured concrete slab. The resulting void minimises concrete contact with the soil, providing an absolute barrier against moisture. There’s no need for footings, and ecodome can be ventilated and used as a heat transfer system.
No mess,
no stress

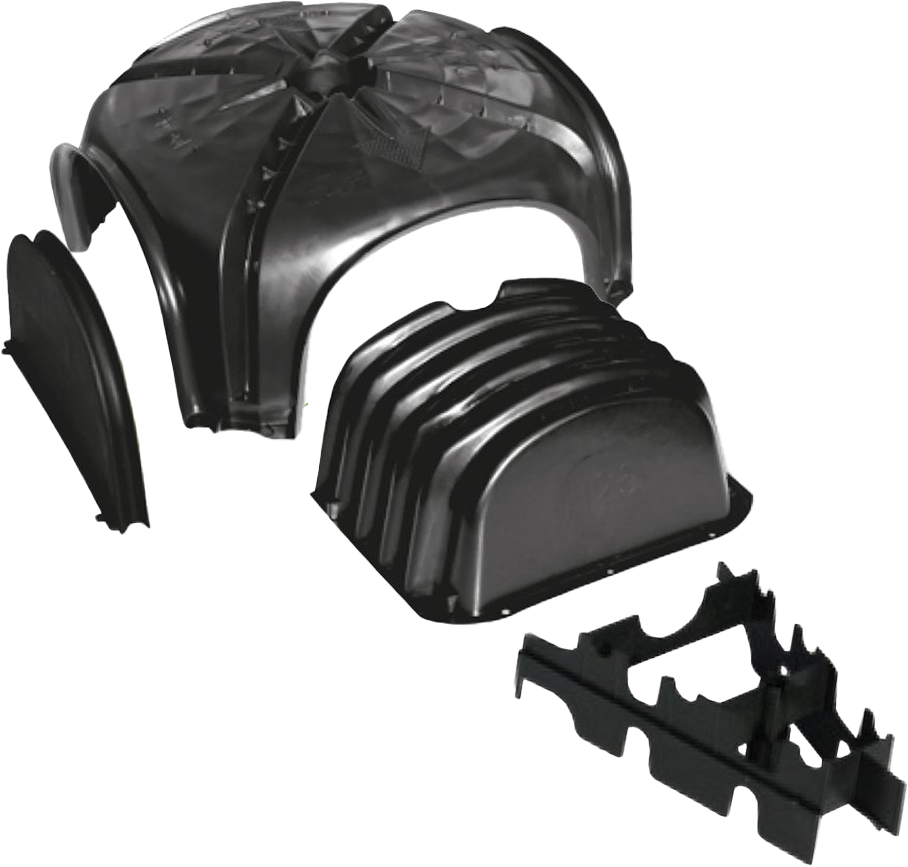

Ecodome’s interlocking system is fast and easy to install.
No pesky clips or polystyrene mess. It’s virtually a zero-waste flooring system. It ramps up the strength due to its shape and maximises the efficiencies in concrete, labour, and freight.
More cost effective

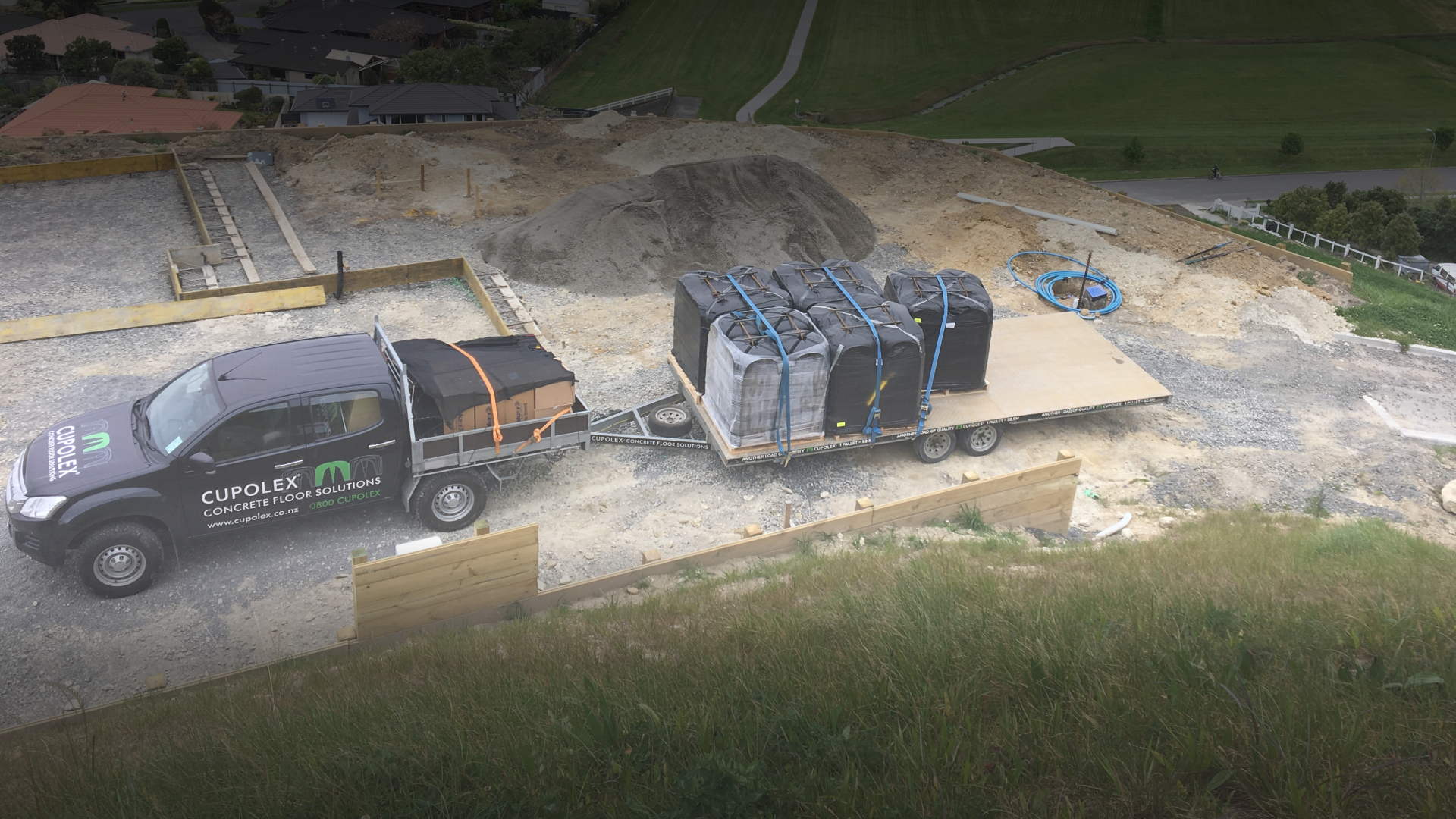

Ecodome provides savings in concrete, steel, labour and freight and is virtually a zero-waste flooring solution. All components are palletised for ease of transportation, using just two pallets per 100m2. And Ecodome is simple to place with no mess compared to that crumbly white stuff.
Delivery pallets required for a 250m2 floor
Ecodome would take 5 pallets. the equivalent in poly pods would take 45 pallets!
Frequently asked questions
How long has Ecodome been around?
Ecodome, under the brand Cupolex, has been available in New Zealand since around 2005. However, Globally Cupolex was available much earlier.
Do you have CodeMark or Branz appraisal?
Yes, we have both.
CodeMark Certificate No: BRANZ-CM-1026
Branz Appraisal No. 1221 [2022]
How much is Ecodome?
Without a design, it is hard to price, as there are many different contributing factors. I.e., ground conditions, site location, foundation size, pod size and of course the loadings on the slab. We do not provide a full supply rate. However, we can train clients and/or their Subbies on how to install Ecodome, or we can recommend contractors that provide full supply.
Do you provide a design service?
Yes, we can provide a design service through 3rd party designers, or we can work with your preferred designer.
What is the R-value of Ecodome?
R values will vary on the design and floor size. However, Ecodome does achieve an above code R-value. Ecodome has independent testing that was carried out by Enercon (now known as Lumen) and also BG&E Consulting.
Can you use underfloor heating?
Yes, you can use underfloor heating with Ecodome. We would recommend that you know what the system specifications are, i.e., pipe sizes so that the floor can be thickened up to allow for this. The same goes for polished floors whether or not you are looking at a “Heavy grind” or more of a “Salt and Pepper“ finish.
Do you cut your floors?
This depends on the designer and also the ground conditions. Although Ecodome is not prone to cracks Concrete is a natural product that can crack.
How does it compare to polystyrene??
Ecodome components can be more expensive in some areas of New Zealand. However, the overall true cost of the floor is comparable. Because there is no waste you eliminate the need for a bin and clean-up costs, you can also have Ecodome delivered at the same time as the steel and mesh thus cutting the downtime along with site traffic. Also because of the way that Ecodome is packed, you are able to have it on site days before you need it knowing it won’t blow away.
Where is it made?
We manufacture Ecodome in NZ out of 100% recycled and recyclable plastic.
Do you still need a DPM/Polythene?
Yes, we do as it’s a NZ Standard requirement.
What is the Height of Ecodome?
There are three heights in NZ; Zealand: 200 mm, 260 mm, and 350 mm, all with a minimum concrete requirement of 60mm.
Can Ecodome be designed for TC2,3?
Yes, Ecodome can be designed for all Technical land Categories (TC).
Has Ecodome been independently tested?
Yes. Ecodome was tested by The University of Auckland on the 1st of December 2005. The aim of the test was to validate the strength of Ecodome floors to be used in residential and garage floors in order to meet the requirements of the New Zealand Standards.
The conclusions are as follows:
300mm thick floors constructed using 260mm Ecodome flooring modules can sustain the 13kN point load required for garage floors by the New Zealand loading standards
The deflection of the load point did not exceed 0.25mm when a point load of 13 kN was applied
The floors tested responded elastically until a load of approximately 80 kN was applied.
Is there a crawl space under the Ecodome?
No. Because there is a central stiletto of the pod and the opening of the Ecodome is a maximum of 200mm.
Do I have to use a special concrete mix?
No. By choosing to use Ecodome, you can enjoy the freedom of using any certified concrete. Unlike some systems where you can only use certain concrete suppliers which can lead to additional costs and delays.
For any further questions, please email us.
